Designed for rigid and flexible media, offering superb, high quality printing in a 3.3m platform.

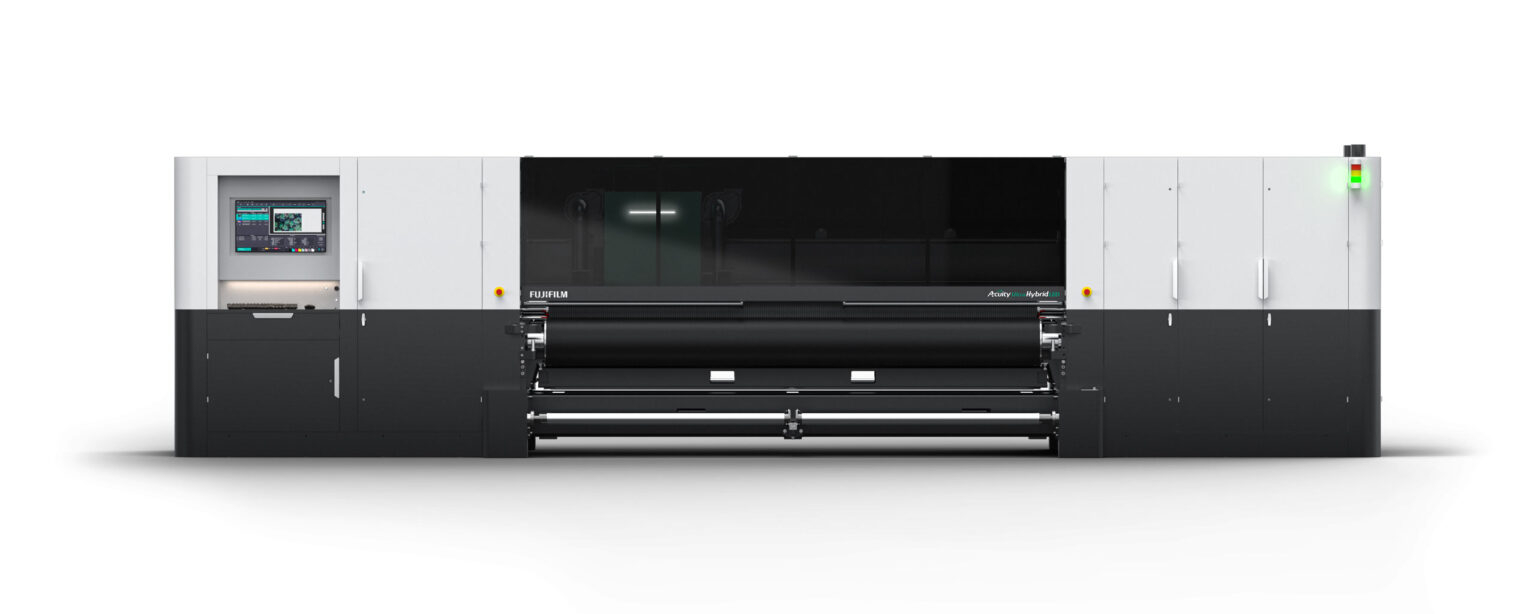

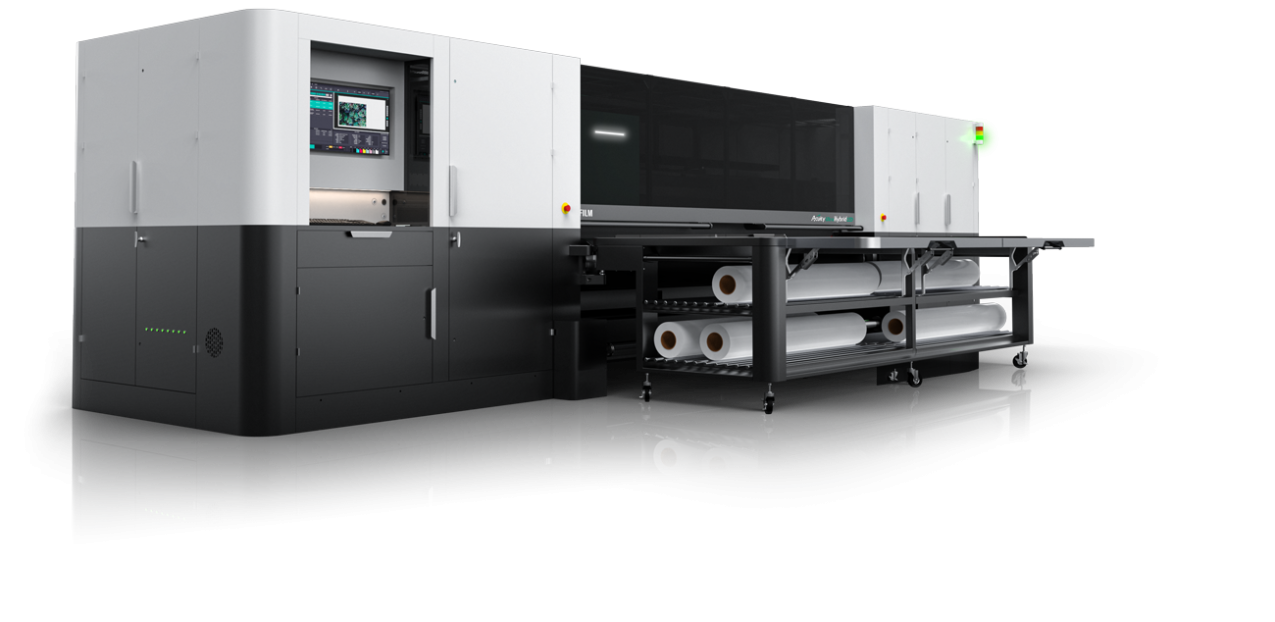

The Acuity Ultra Hybrid LED is a high-end printer designed for rigid and flexible media, offering superb, high quality printing in a 3.3m platform
The Acuity Ultra Hybrid LED uses the same head carriage as the Acuity Ultra R2, capable of ejecting greyscale drops down to 3.5pL in size to deliver superb print quality. Combined with an industrial build quality, a linear motor head carriage drive and Fujifilm’s high performance Uvijet UH inks, the very best print quality is guaranteed.
Like the Acuity Ultra R2, the Acuity Ultra Hybrid LED is built on a substantial welded steel construction, together with solid steel bars, which contribute to the machine’s 8.3T weight. This design not only delivers a robust construction, it also ensures that the printer displays very little vibration during operation, further enhancing print quality.
Many hybrid printers use a belt drive to move the print carriage, often resulting in a reduced life span as well as impacting print quality. The Acuity Ultra Hybrid LED uses a linear motor drive for the head carriage delivering travel speeds of 1900mm per second when using the fast carriage travel speed. The carriage movement is quiet and free from vibration, travelling along dual rails with the carriage supported by 6 large race bearings.
A range of advanced features have also been incorporated into the design of the Acuity Ultra Hybrid LED to improve operation and maximise uptime. These include:

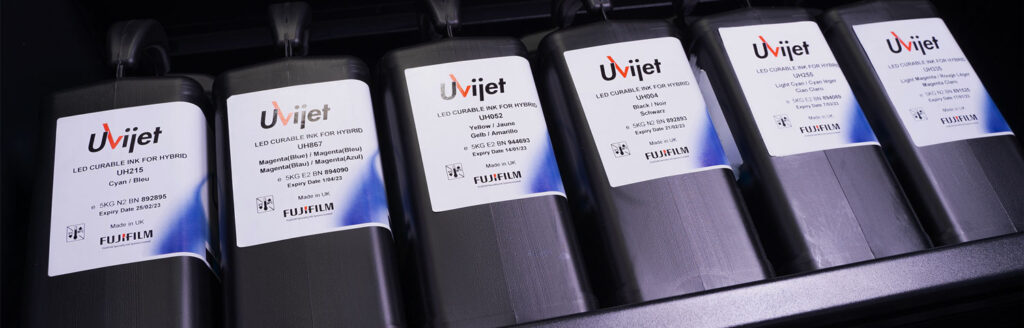

Fujifilm has developed a new high performance LED curing ink for use in the Acuity Ultra Hybrid LED, specifically designed to give the adhesion performance needed in a hybrid solution. However, the ink still delivers the same high coverage and print quality as Fujifilm’s other Uvijet AU and GS inks, with customers also able to benefit from the same low ink usage.

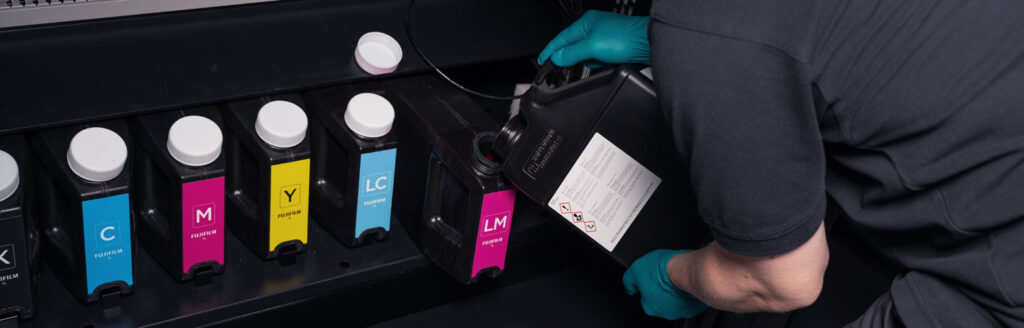

The Uvijet UH ink set consists of six standard colours (CMYKLcLm) and an optional white ink. The printer can be configured with two white ink channels to maximise throughput speeds and print density.
The Acuity Ultra Hybrid LED with white ink allows flood white under-printing for non-white media, over-printing white for backlit applications on transparent media and/or printing white as a spot colour. The new ink range has both Greenguard Gold and AgBB certification.
The combination of intelligent design features and Fujifilm’s new Uvijet UH high performance ink, ensures that the Acuity Ultra Hybrid LED is one of the most versatile platforms on the market, able to produce an unrivalled range of applications at both high quality and high speed.

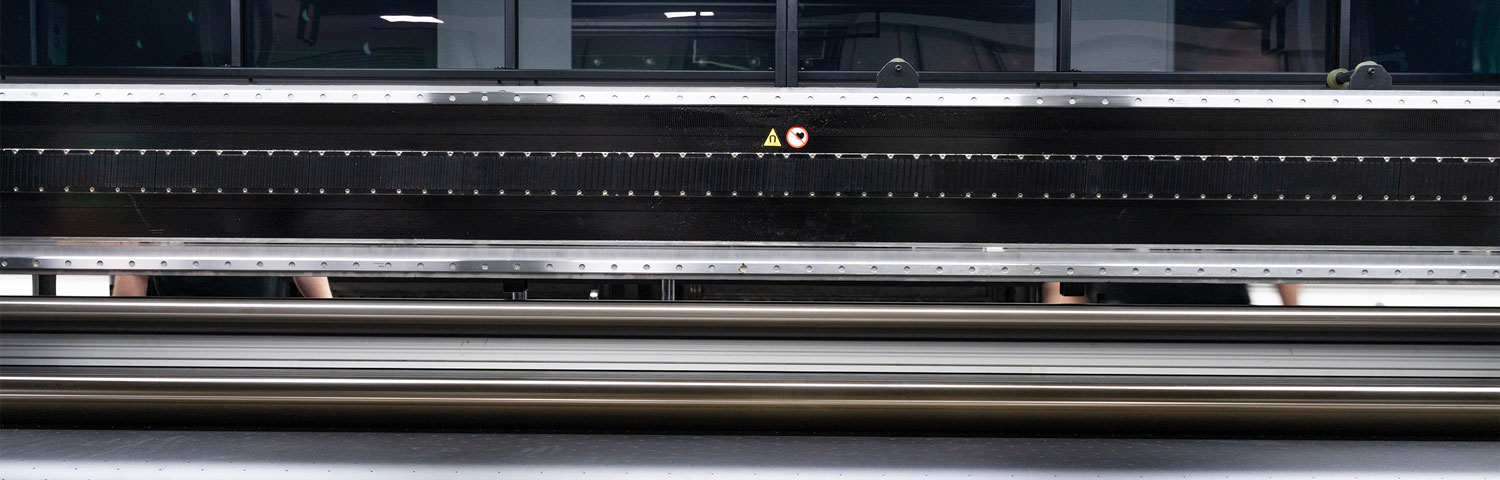

The Acuity Ultra Hybrid LED’s belt transport and intelligent vacuum systems are truly unique, meaning it can print on a range of rigid substrates previously only possible on dedicated flatbed systems.
This means low cost Correx products for short term signage applications such as for sale signs and building hoardings, can be printed at high speed with multiple panels (up to 5 across the bed) continually printed with a single operator.
In addition, the Acuity Ultra Hybrid LED can print onto Dibond and Acrylics, utilising multilayer printing and white for reverse printing, and two sided applications.
These applications take advantage of the superb transport system and accurate dot placement, and can deliver high margins and additional revenues, previously only possible with a dedicated printer.

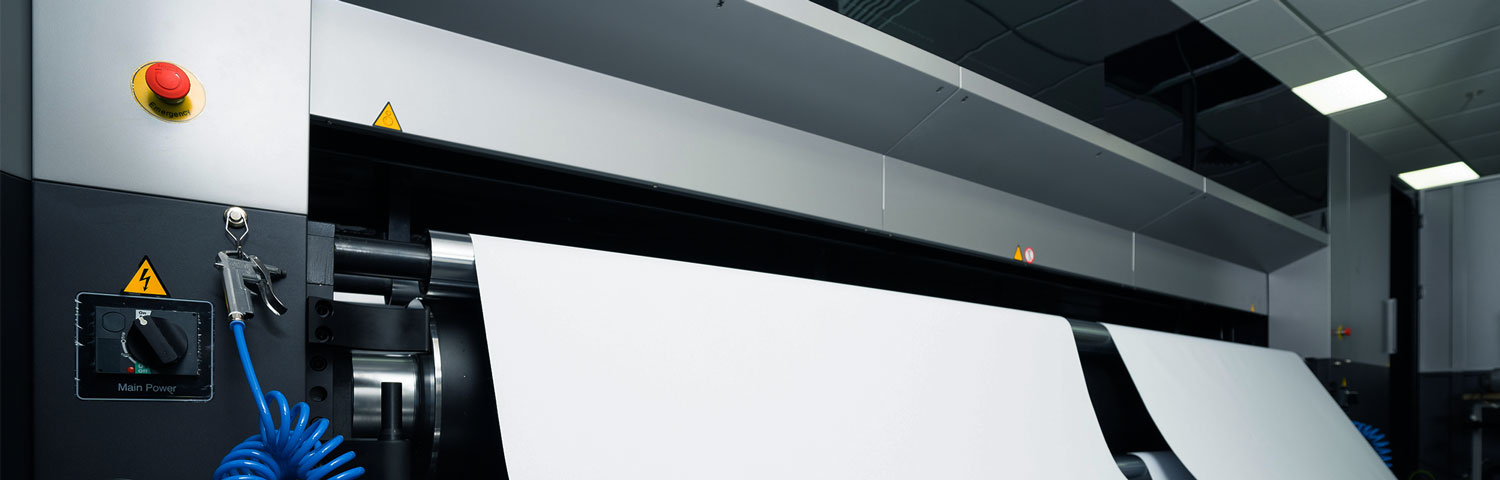

The Acuity Ultra Hybrid LED can also print 2 x 1.6m rolls, even with different diameters, as the shafts have a differential in the middle meaning the rolls can spin at different speeds.
All rolls are transported perfectly through the printer, producing high quality results on materials such as self-adhesive vinyl, pop up materials for roller banners, floor graphics and billboard paper all delivered at high speed.
For both rigid and roll, the Acuity Ultra Hybrid LED can also print white on a wide range of clear materials such as clear self-adhesive PVC, optically clear polyester and polypropylene – all high margin applications for retail applications.
It also capable of printing on wall covering materials, either short rolls up to 1.6m with a textured finish, or on 3.2m seamless wallcoverings for business applications such as hotels and retail spaces.
Roll feeders located on the tables mean many short run applications can be printed economically, with very little waste material and fast change-around times, making the Acuity Ultra Hybrid LED a truly versatile production system.
